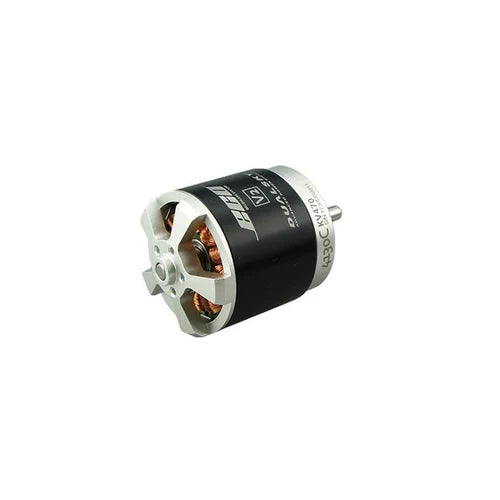

Experience the next level of performance with the ECO V2 series, exemplified by the ECO 4130C 470KV brushless motor. Tailored for 90E-110E models and double-wing 70e models like the Sebart Miss Wind, this motor combines a new electromagnetic design with enhanced competitive prowess, efficiency, long-time endurance, and water-resistant features.
Key Features:
- 25% increase in motor structure strength
- Optimized stress distribution without added weight
- High-strength, high-toughness main shaft (HRC48)
- Dual insurance modes with circlip and stainless steel chocks for rotor limit
- High-temperature resistant epoxy glue for increased impact resistance
- High precision double-sided dynamic balancing
- NMB ball bearing for durability and low noise, with 3 ball bearings for ECO 41 and larger models
- Improved heat dissipation for a 50% increase in motor working life
- Modular design compatible with upcoming EA series
- Up to 500V insulation level, waterproof and rustproof features for operation in wet or rainy environments
Specifications:
- RPM/V: 470
- Weight: 380g
- Turns: 5.5
- Dimensions: 49.5 x 55.2mm
- Slots & poles: 12N14P
- Ri(mOhm): 16.4
- Io @10V (A): 1.5
- No. of cells (LiPo): 4-12S
- Max Efficiency Current (A): 54
- Max. Burst Current (15S): 90A
- Max. Power (15S): 1800W
- Max Torque: 2.2 N*M
- Shaft Diameter: 6mm
- Mounting Holes Pitch: 30/30mm
- Input Connectors: GC4.0
- Recommended ESC: XC8018BA
- Propeller:
- 5S: 18 x 10E, 17 x 8E
- 6S: 16 x 8, 15 x 8
- Class: 0.80-.110 4-stroke
