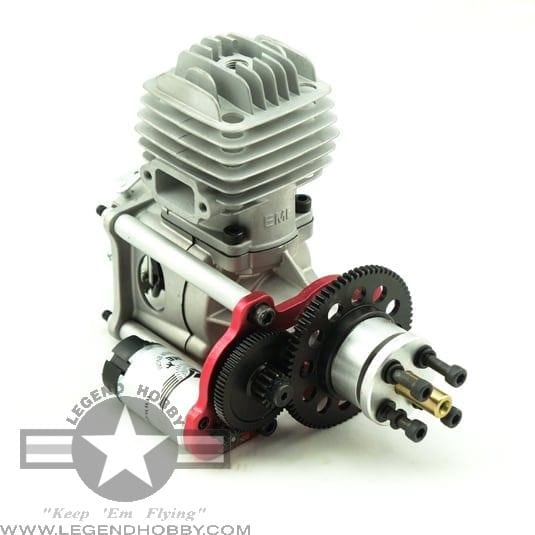

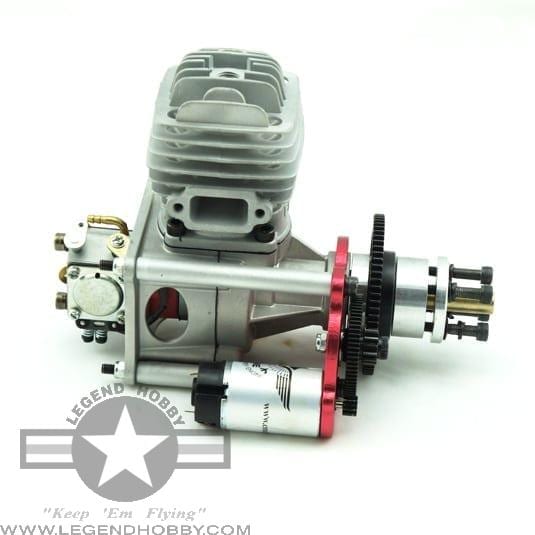

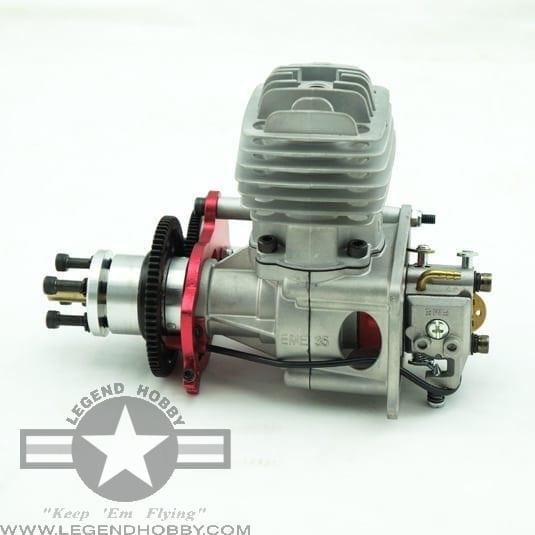

EME 35 AS (with Auto Start) Engine

EME 35 cc Gasoline Engine with Auto Start

Now with Ceramic coated cylinders and Walbro Carb!!

Free NGK Spark Plug

You will love having electric start feature on your Warbird or Sport Plane. No more flipping a prop. Simply assign it to a switch and start your motor with the push of a butting/flip of a switch. Drive gear incorporates a one way bearing so power is not transferred back to the motor.

To make installation and operation of the AUTO START UNIT simple, we recommend using the EME AUTO START CONTROLLER.

100 Amp Controller / Electric Switch for Auto Starter

Includes XT90 Plugs

This is the new controller (more stable on 3-cell). Now with a case and LED power indicator. 46g, Pulse Width 1.2-1.4MS, 7.2 - 15V / 100Amp Max

We suggest 2 or 3-cell Lipo

No Instructions Included

EME 35 Specifications:
Displacement: 35 cc
Weight: 2.52 lb (includes muffler and ignition)
RPM Range: 1,550-7,500
Output: 3.6 hp @ 7,100 rpm

Thrust: 9kgf @ 200M (19.8 lbs) ~ 8.1kgf @ 2000m (17.8 lbs)
Requires: unleaded gasoline 91-93 octane, oil 1:30 - 1:35, ignition battery ( 4.8v-6V) & propeller (18x10, 19x10, 20x8)
Includes: electronic ignition, muffler, spark plug, gasket, steel bolts, machined aluminum standoffs, throttle arm
Suggested Propellers: 18x10, 19x8, 19x10 & 20x8

Technical Data:
Ignition Battery: 4.8-8.4V HV Ignition
Compression Ratio: 7.6:1
Gas/Oil Mix: 30:1
Replacement Spark Plug: CM6
Weight Breakdown: Engine: 33.86 oz (960 g); Muffler: 1.58 oz (45 g); Ignition: 4.9 oz (140g)

Ignition: Rcexl

Auto Starter Specs add the following to the regular Gas Engine Specs above:

Total Weight - 19oz. (560g)

480 Brushed Motor

- Input 3-15V

- We recommend the optional controller for ease of use (requires a controller in addition to the engine with Auto Start Motor/gearbox).

Electric Controller is listed here:

http://www.upgrade.www.legendhobby.com/product_info.php?products_id=706

Electric Starter is available to be purchased separately to use on the DLE30, DLE35RA, EME35.

Warranty/Service/Parts:

18 Month Warranty - Serviced right here in the USA.

Warranty and Service Center with readily available spare parts here in the USA !
